分类: 壳体与机柜.

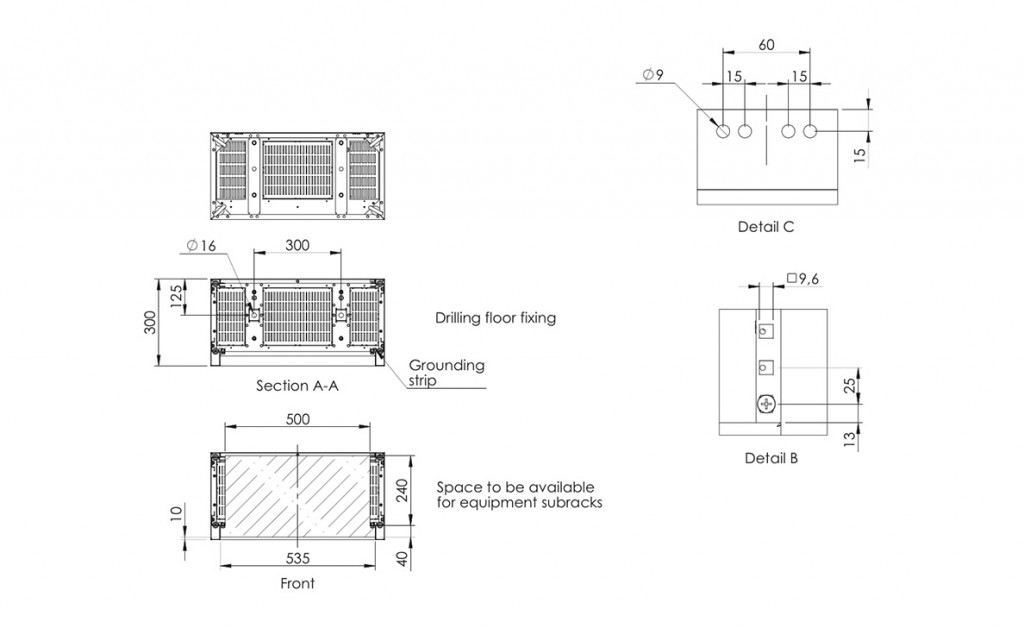

ETSI电信行业机柜600x300x2200mm.
ASSEMBLY
| Assembly | ||
| Pos. | Descrizione | Q.ty |
|---|---|---|
| 1 | Base | 2 |
| 2 | Top cover | 4 |
| 3 | Side panel | 4 |
| 4 | Rear panel | 2 |
| 5 | Mounting profile front | 2 |
| 6 | Mounting profile rear | 2 |
| 7 | Grounding strip | 2 | 8 | Adjustable levelling feet | 2 |
The mechanical structure is made of steel and all surfaces are treated with epoxy powder paint and have a orange peel finish; standard colour is RAL 7001
